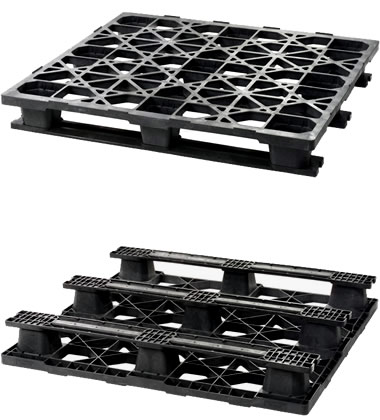

CP-4845-3R-533 Plastic Pallet

48x45 Stackable Rackable Plastic Pallet

CP-4845-3R-533 Plastic Pallet

NAME CHANGE: CP-4845-3R-533 was previously CPP533/ACM or CPP533/PE

The CP-4845-3R-533 at a glance:

  • Plastic (HDPE/PP)
  • New
  • 48x45
  • 48x45x5.9 inch
  • 1219x1143x150 mm
  • 32.0 lbs
  • 17,600 lb static
  • 4,400 lb dynamic
  • 1,300 lb racking
  • Open Deck
  • 3 Runner Base
  • Rackable
  • Stackable
  • One-Way
  • Export
  • Air Freight

Pallet Features


CP-4845-3R-533 Plastic Pallet

Download Spec Sheet View Assembly Instructions

Quick Facts

Condition
New
Material
Plastic (HDPE/PP)
High-Density Polyethylene/Polypropylene
Size
48x45
Dimensions
48x45x5.9 inch
1219x1143x150 mm
Weight
32.0 lbs
Static Load
17,600 lbs
Dynamic Load
4,400 lbs
Racking Load
1,300 lbs
Pallets/Truck
468
Pallets/Stack
18 TL / 16 LTL
Top Deck
Open
Bottom Base
3 Runner - Unidirectional Long Side

Special Features

Note: CP-4845-3R-533 was previously known as CPP533/ACM or CPP533/PE

  • Allows for safe double stacking
  • Standard size for automotive industry
  • Impervious to acids, fats, solvents and odors
  • Resists water absorption & bacteria growth
  • Inert to infestation, mold and mildew
  • Consistently dimensionally accurate
  • Exempt from ISPM 15 shipping regulations

CP-4845-3R-533 Specifications

Notes & Availability
  • In-Stock or Available
Weights & Measures
  • 48x45
  • 48x45x5.9 inches
  • 1219x1143x150 mm
  • 32.0 lbs
  • 17,600 lb static load
  • 4,400 lb dynamic load
  • 1,300 lb racking load
  • 468 per Truck
  • 18 per Stack
  • 16 per Stack (LTL)

TL (truckload) and LTL (less-than-truckload) quantities are approximate and may vary by transport equipment or other factors.

Material
  • New Pallet
  • Plastic (HDPE/PP)
  • High-Density Polyethylene/Polypropylene
  • Recycled Material Option
  • Color Options: Black
  • Recycled
Design
  • Rackable
  • Stackable
  • Open Top Deck
  • 3 Runner - Unidirectional Long Side
  • 4-way Entry

Available Options:
No Snap-on Runners (nestable)

Usage & Environment
  • Automotive Pallet
  • Specialty or Industry Pallet
  • One-Way
  • Export
  • ISPM-15 Exempt
  • Air Freight Friendly

Specs subject to change without notice. Provided for informational purposes only. Technical data are guideline values and may vary based on intended use, features, raw materials and environment. Nothing shall be construed as warranties or guarantees, express or implied, regarding products or their use, application, performance or otherwise.
